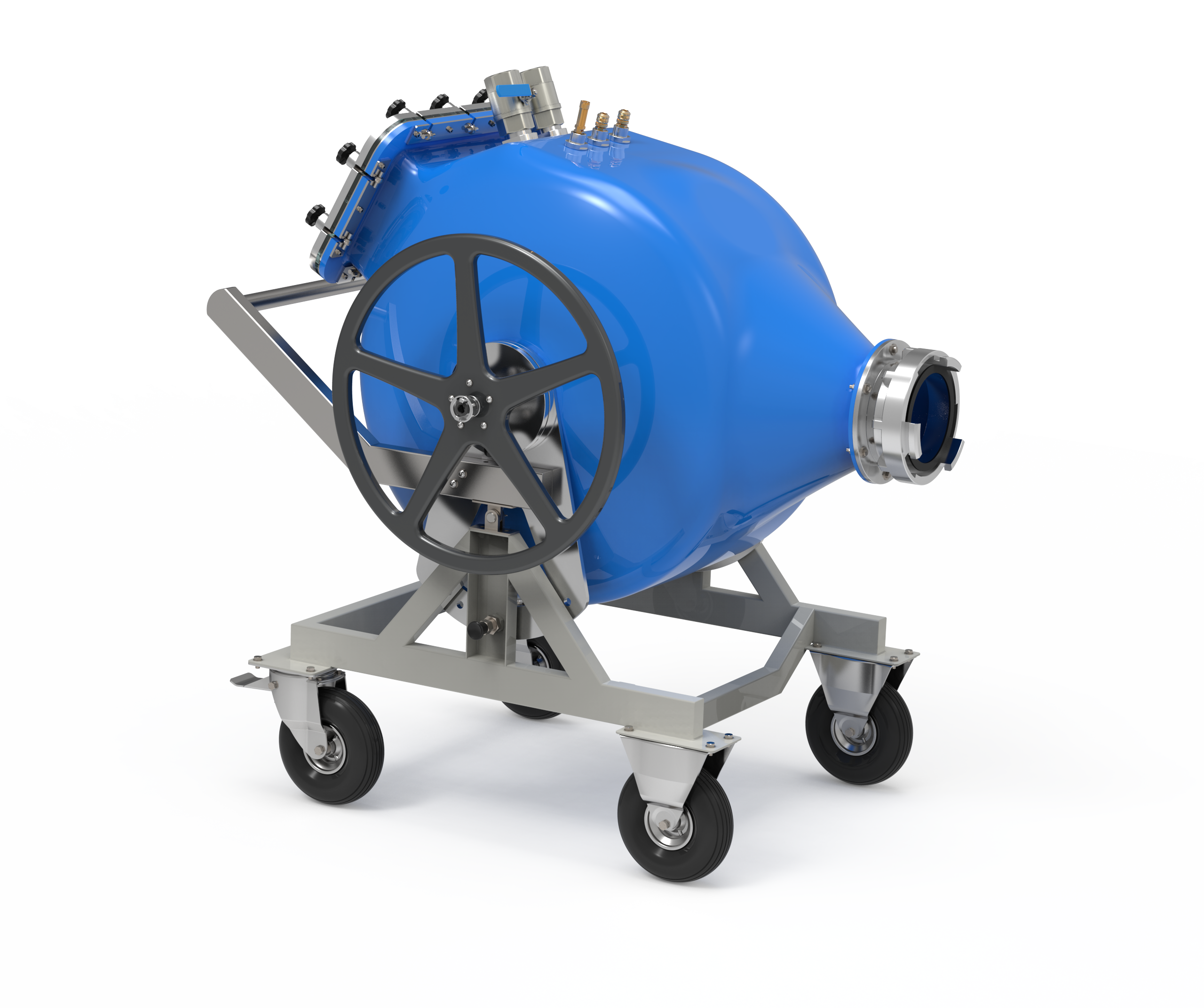

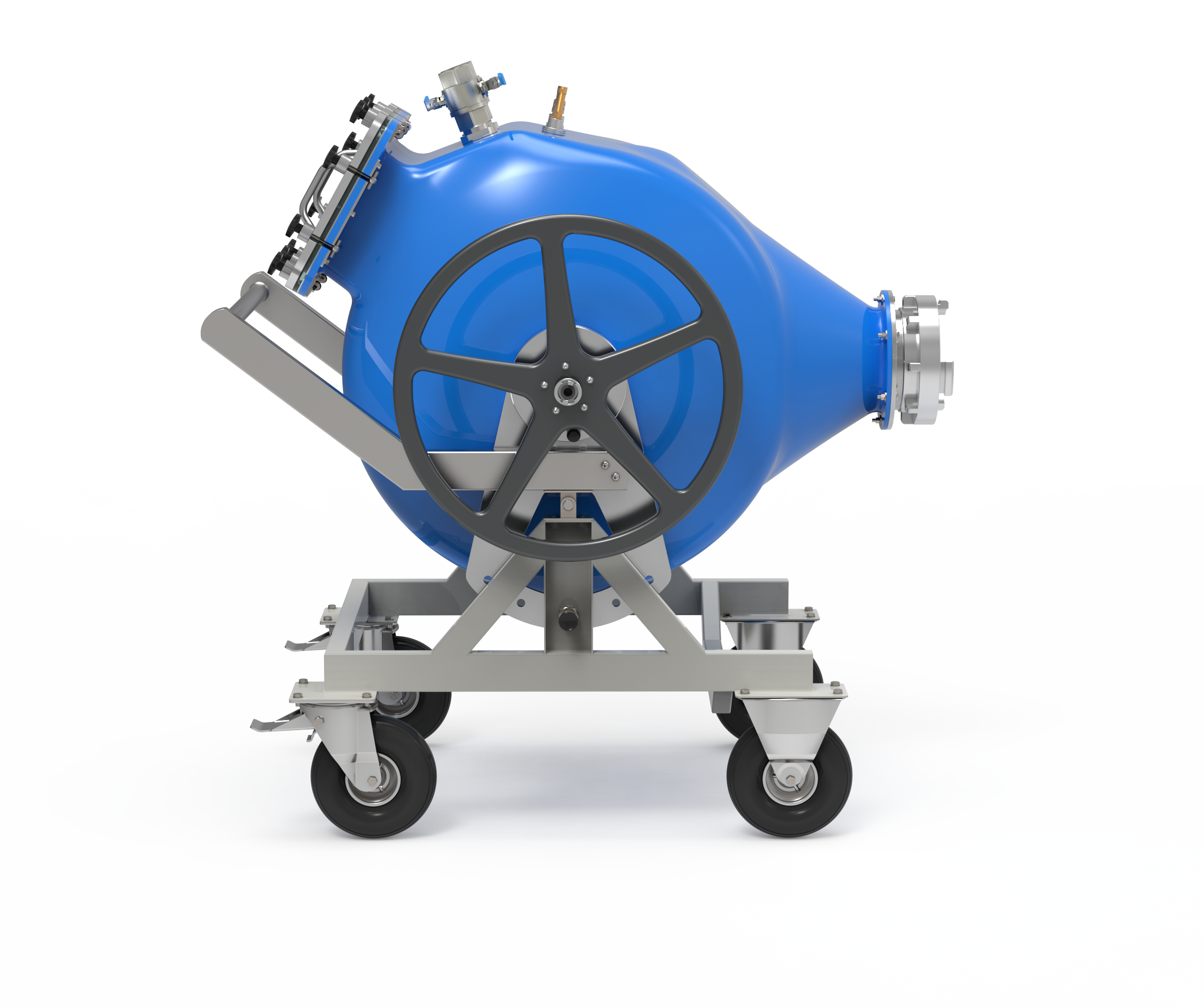

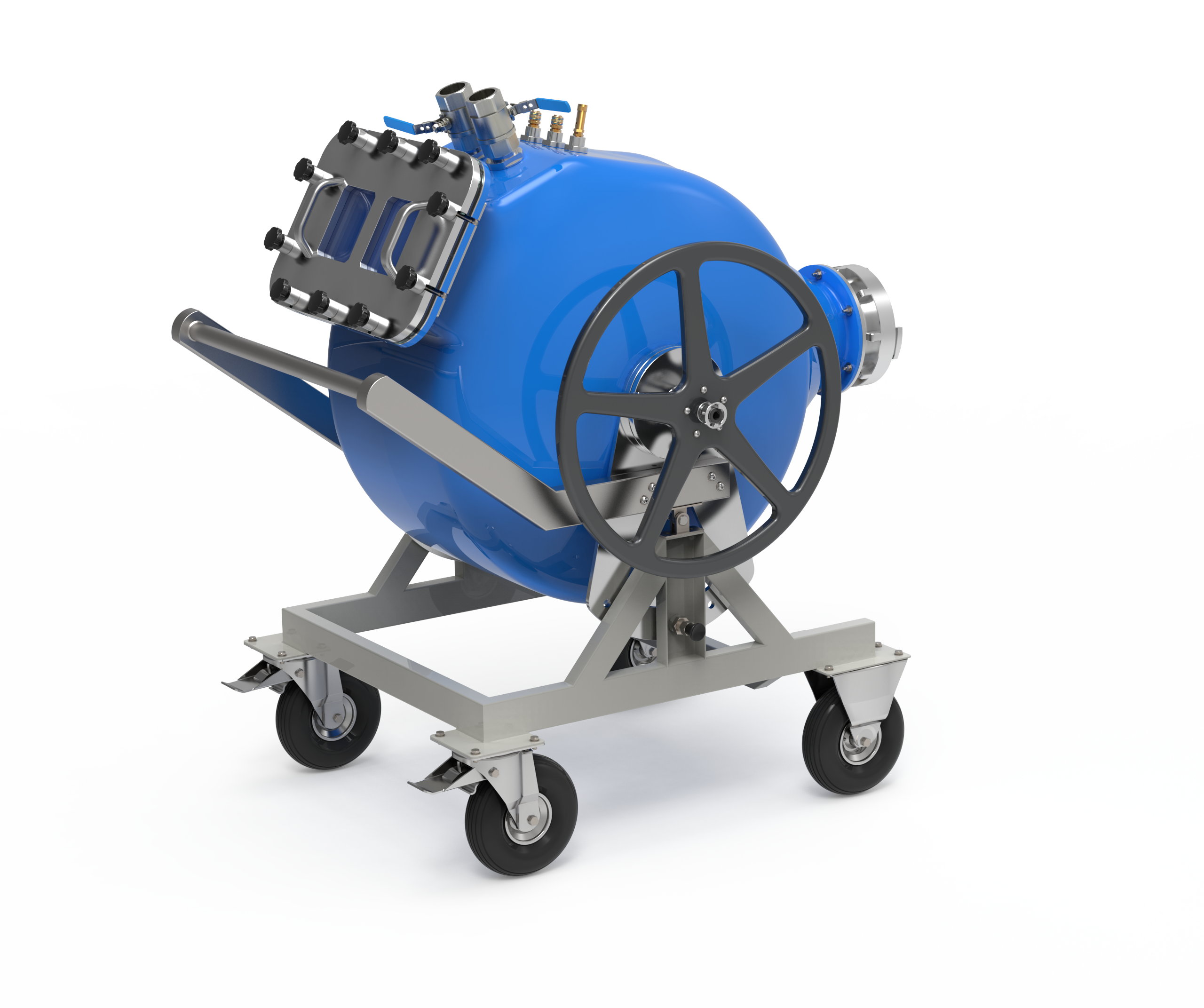

Sanidrum 9500
Easy to handle!
Low inversion drum weight provides an easy move over the land as well as when pulled down and put back to the van. In addition the design of the wheal drive gives a light way for operators to drive.
Low in weight!
The rst inversion drum ever made of composite material. Enables low weight, enough temperature resistance to even use steam as heating media. Does not corrode and is easy for maintenance.
Made of composites!
Composite material has been already wide used even in aero- space industry. the time has come to explore this technology also in pipe rehabilitation area. Drum that has no seems so no leak can appear, can also widstand bigger pressure is resistant to punctures etc.. Even the service window is made of composite material what makes the operator job easy.
Techical details
Dimensions, weight and liner capacity
Liner capacity
| Liner DN | max length (m) |
|---|---|
| DN100 | 150 |
| DN125 | 125 |
| DN150 | 110 |
| DN200 | 100 |
| DN250 | 80 |
| DN300 | 60 |
